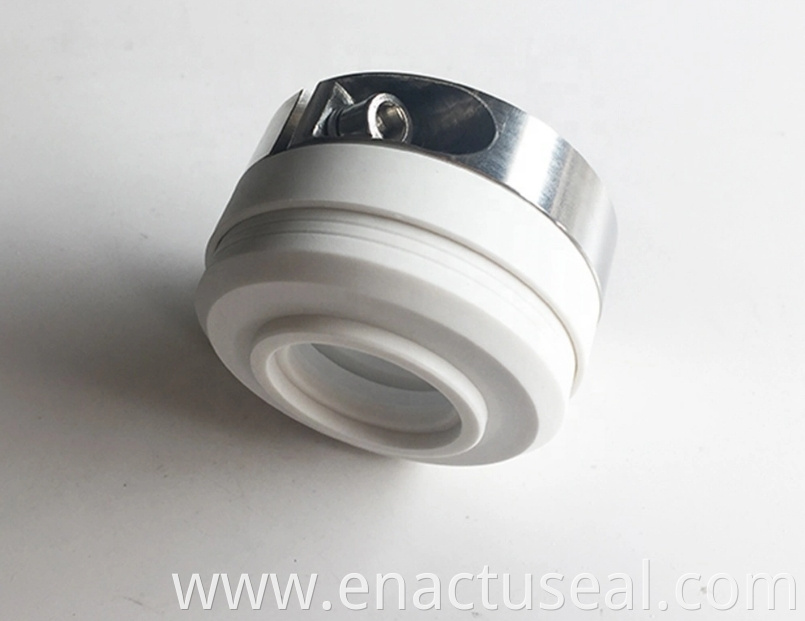

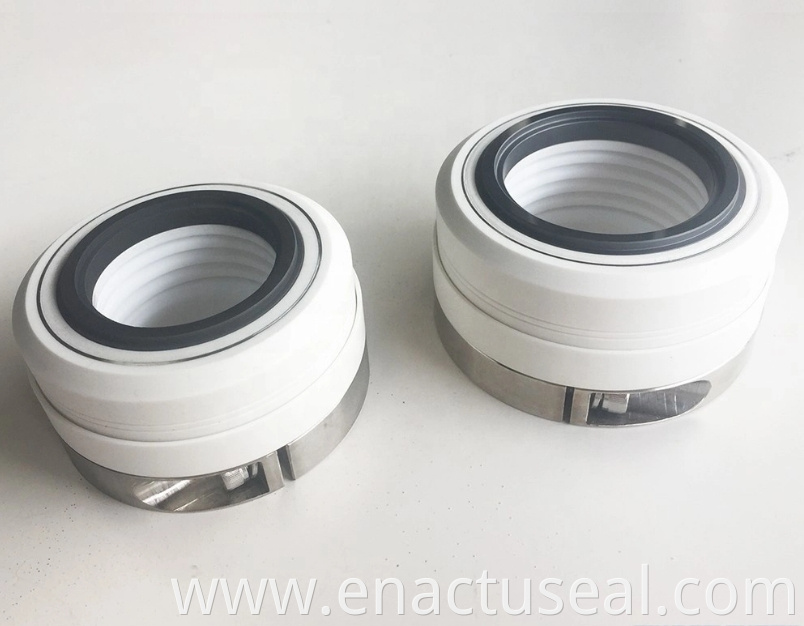

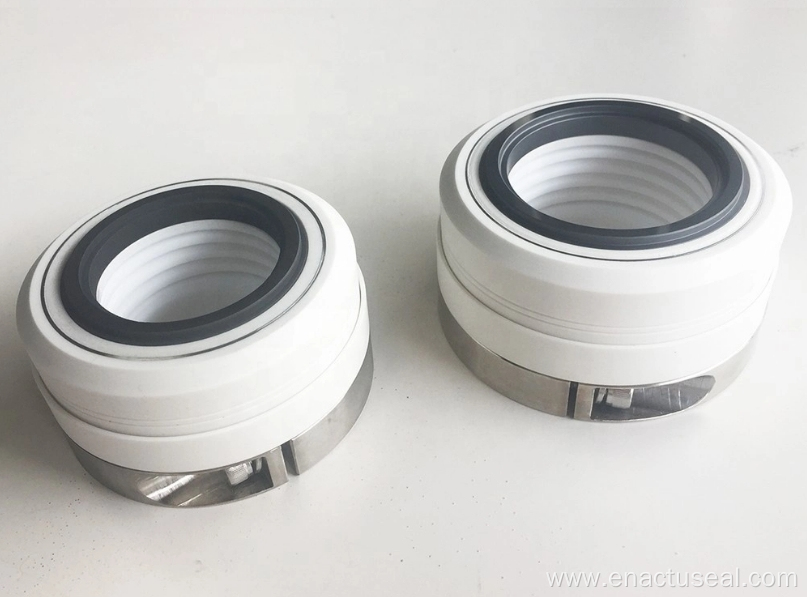

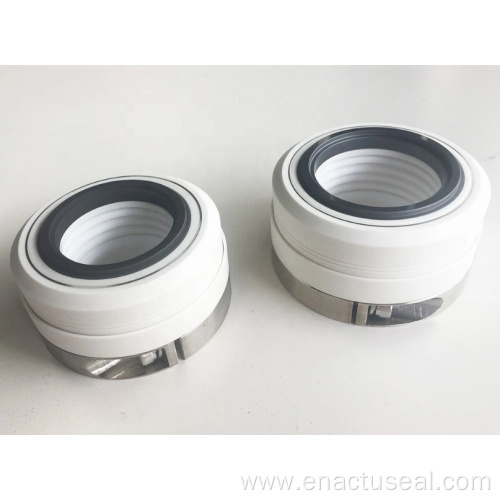

PTFE Bellows Mechanical Seals
Payment Type:
L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union
Incoterm:
FOB,CFR,CIF,EXW
$11,300.00 — $5,600,000.00 /Set
Product Description
Product Attributes
Brand: Enactus
Place Of Origin: China
Brand Name: Enactus
Size: Customized Size
Speed: ≤20m/s
Application: Our products are successfully used in different fields, such as Water treatment, Petroleum, Chemistry, refinery, pulp & paper, food, marine etc.
Pressure: ≤1.2mpa
Temperature: -50 °C~+220 °C
Supply Ability & Additional Information
Packaging: 1.Tissue paper + Carton box 2.As per customer`s requirement
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 100000 Piece/Pieces per Month
HS Code: 8484200090
Port: shanghai,guangzhou,ningbo
Payment Type: L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Packaging & Delivery
- Selling Units:
- Piece/Pieces
- Package Type:
- 1.Tissue paper + Carton box 2.As per customer`s requirement
Product Description
PTFE bellows Mechanical Seals are commonly used in applications where chemical resistance is critical, such as in the chemical, pharmaceutical, and food processing industries. They are also used in applications where the seal faces need to be isolated from the process fluid, such as in pumps handling toxic or hazardous substances.Lasdrop Shaft Seal,Ptfe Wedge Seals.
Some advantages of PTFE bellows mechanical seals include:
1. Chemical resistance: PTFE is highly resistant to a wide range of chemicals, making it suitable for use in corrosive environments.
2. Temperature resistance: PTFE can withstand high temperatures without losing its sealing properties.
3. Low friction: PTFE has a low coefficient of friction, which helps to reduce wear and improve the efficiency of the seal.
4. Flexibility: The bellows design allows for axial movement, which helps to compensate for misalignment and axial movement of the shaft.
5. Long life: PTFE bellows mechanical seals are known for their durability and long service life.
Some advantages of PTFE bellows mechanical seals include:
1. Chemical resistance: PTFE is highly resistant to a wide range of chemicals, making it suitable for use in corrosive environments.
2. Temperature resistance: PTFE can withstand high temperatures without losing its sealing properties.
3. Low friction: PTFE has a low coefficient of friction, which helps to reduce wear and improve the efficiency of the seal.
4. Flexibility: The bellows design allows for axial movement, which helps to compensate for misalignment and axial movement of the shaft.
5. Long life: PTFE bellows mechanical seals are known for their durability and long service life.
Features
PTFE bellows seals,
Externally mounted,Independent of direction of rotation.
Multiple spring, single seal ,balanced
Recommended Applications
Chemical and organic compounds industry
Extreme corrosion resistance media
Anticorrosive Pumps
Other Rotating Equipment.
Combined Materials:
Rotary Face:
Silicon carbide (RBSIC)
Carbon graphite resin impregnated Ak
Glass Filled PTFE Y
Stationary Seat
Surfacing Tungsten carbide I
Silicon carbide (RBSIC)
Stainless Steel (SUS316)
99% Aluminium Oxide B1
Bellowas
Composite PTFE Y1
Spring
Stainless Steel (SUS304)
Stainless Steel (SUS316)
Parts
Pure PTFE T
Stainless Steel (SUS316)
Operating range
Shaft diameter: d1=18...100mm(0.750'' ...4.000'')
Pressure: p=0...0.8Mpa（116psi）
Temperature: t = -20 °C ...120 °C(-4°F to 248°F)
Sliding velocity: Vg≤13m/s（42.6ft/m）
Packaging:
1.Tissue paper + Carton box
2.As per customer’s requirement
