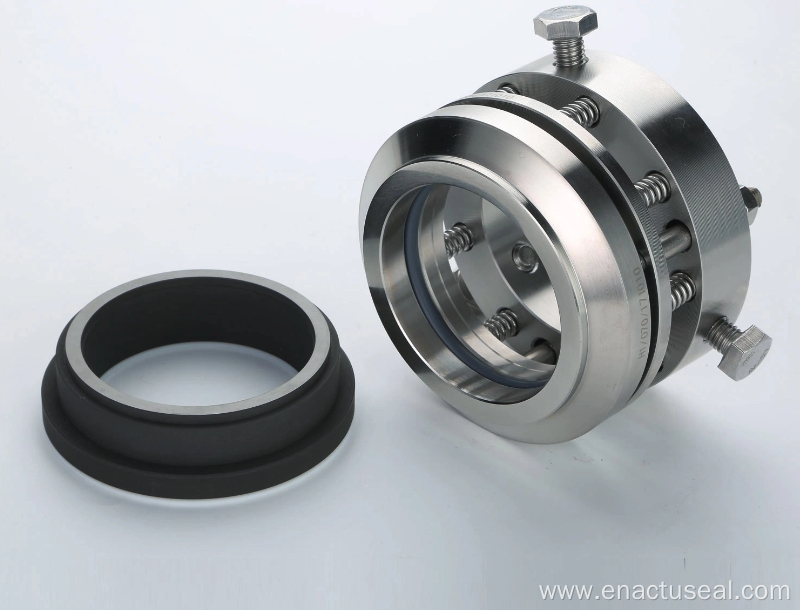

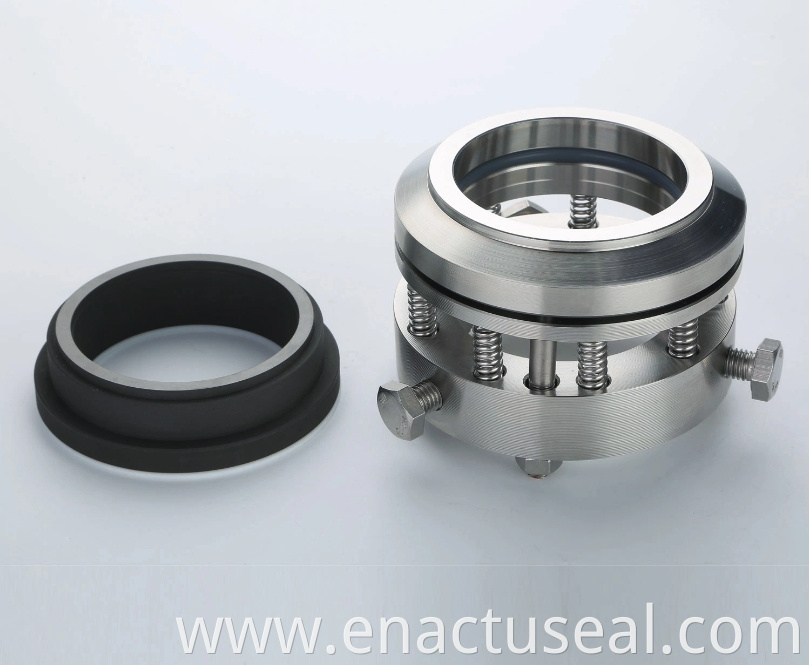

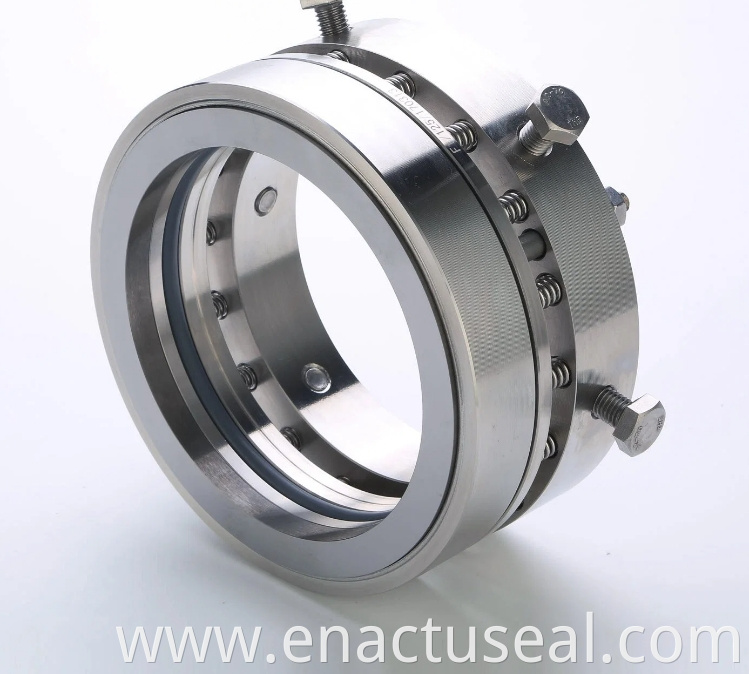

Enactus Multiple Spring Mechanical Seals for Kettles

Enactus offers a range of multiple spring Mechanical Seals specifically designed for kettles. These seals are made to ensure a tight and secure fit, preventing any leakage or spillage during the boiling process. The multiple springs within the seal provide enhanced flexibility and durability, allowing for a longer lifespan and optimal performance. With Enactus multiple spring mechanical seals, users can confidently use their kettles without worrying about any potential leaks or malfunctions.Multiple Spring Mechanical Seal,Multiple Spring Seal.

Basic Features

Structure: Single End

Pressure: High Pressure Mechanical Seals

Speed: General Speed Mechanical Seal

Temperature: Temperature Mechanical Seal

Performance: Corrosion

Standard: Standard

Model NO.: 202Balance: Unbalanced

Specification: Inner Diameter: 32 mm to 200 mm

Operation Parameters

Pressure: 0.1 ~ 0.25 MPa or less

Temperature: - 20 ~ 150 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)

Linear Speed: 2 m/s or less

mainly used in top driven vertical type agitation equipment, as well as devices that do not have strict requirements for leakproofness, such as fermentation tanks, seeding tanks, stainless steel reaction kettles and sewage treatment devices.
