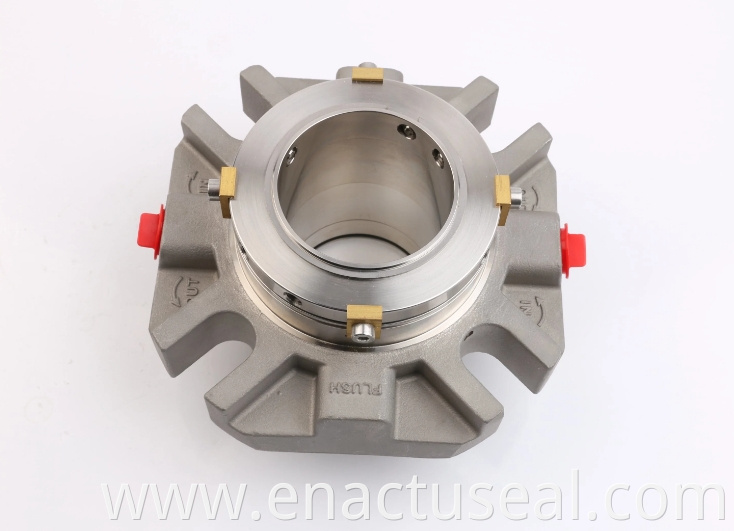

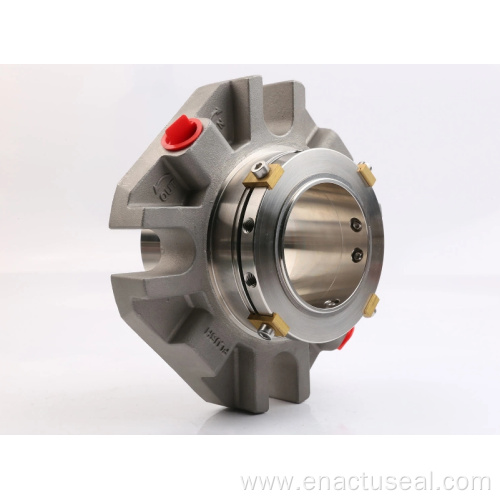

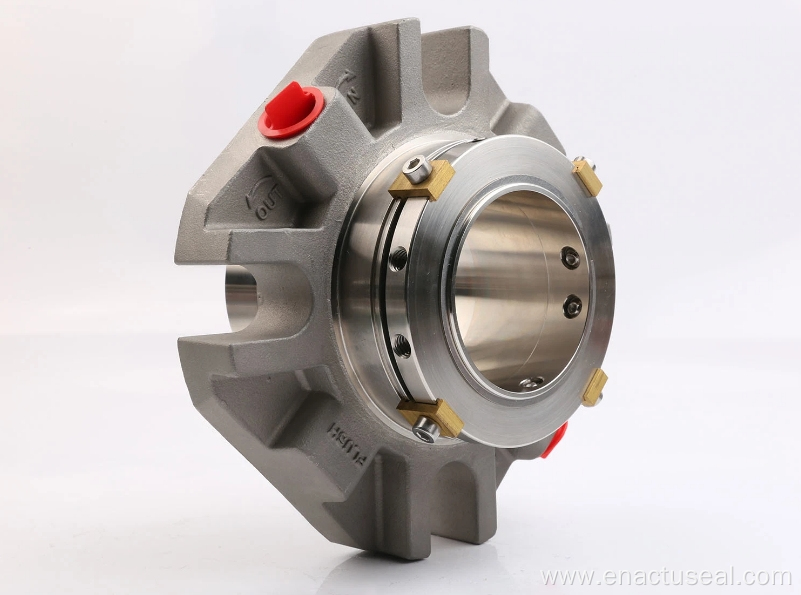

Double Cartridge Mechanical Seal Kdc for Chemical Pumps

Cartridge Mechanical Seal, cartridge mechanical seal types, Cartridge Type Mechanical Seal

The double cartridge design offers several advantages for chemical pump applications. Firstly, it provides enhanced sealing performance, as the two sets of seal faces work together to create a reliable and leak-free seal. This is especially important in chemical pumping applications where the fluids being handled can be corrosive or hazardous.Additionally, the cartridge design simplifies installation and maintenance. The entire seal assembly is pre-assembled in a cartridge, which can be easily removed and replaced without the need for complex disassembly and reassembly of individual seal components. This reduces downtime and makes maintenance tasks more efficient.

Operation Parameters:

•  Temperature: -20 ~ 220ºC
•  Pressure: 0-25Bar
•  Linear Speed: up to 25m/s
•  Sealing Product: Acid, alkaline, low percentage of pulp, water, oil and other similar medi

Materials:
•  Seal Face: SSIC/TC/CARBON
•  Rubber: EPDM/ FKM /Aflas/ Kalrez
•  Springs: ALLOY276
•  Metal Parts: 316SS/DUPLEX/ALLOY276/904L
Key Features:
•  Stationary face compensation technology.
•  Solid seal structure reduces deformation at high temperature and low temperature conditions.
•  Intergrated and Bi-directional diversion, sleeve with pump ring.
•  High speed limits, up to 220 degree. No seal face drop or displacement.
•  Higher pressure limits, up to 25 bar.
•  Wet Part in Duplex steel, 904L, Alloy 276 avaiable.
•  Suitable for API Plan 52/53A/53B/54.
