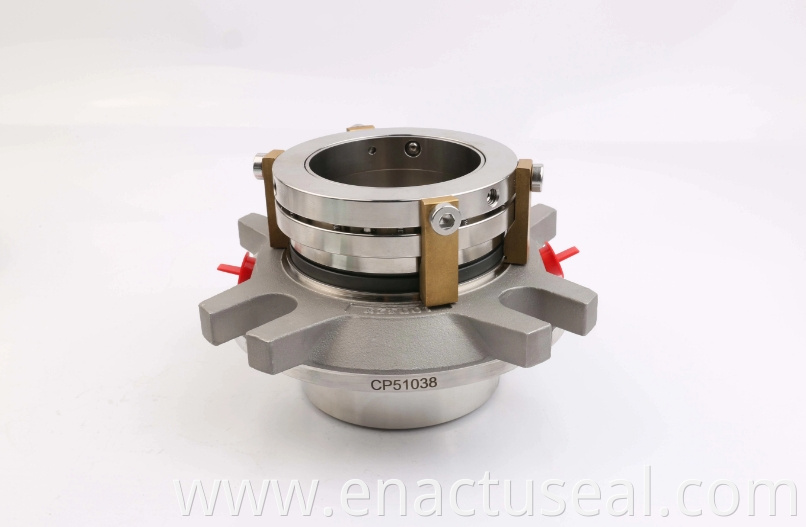

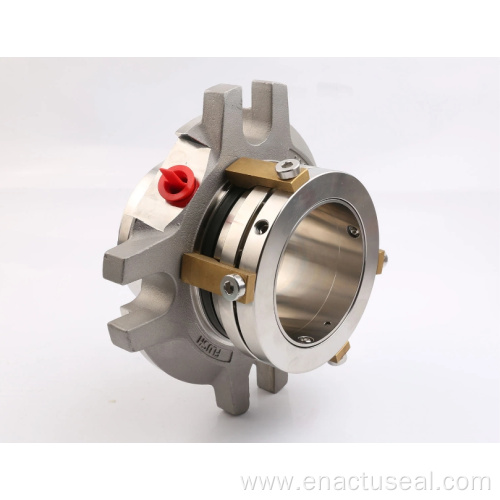

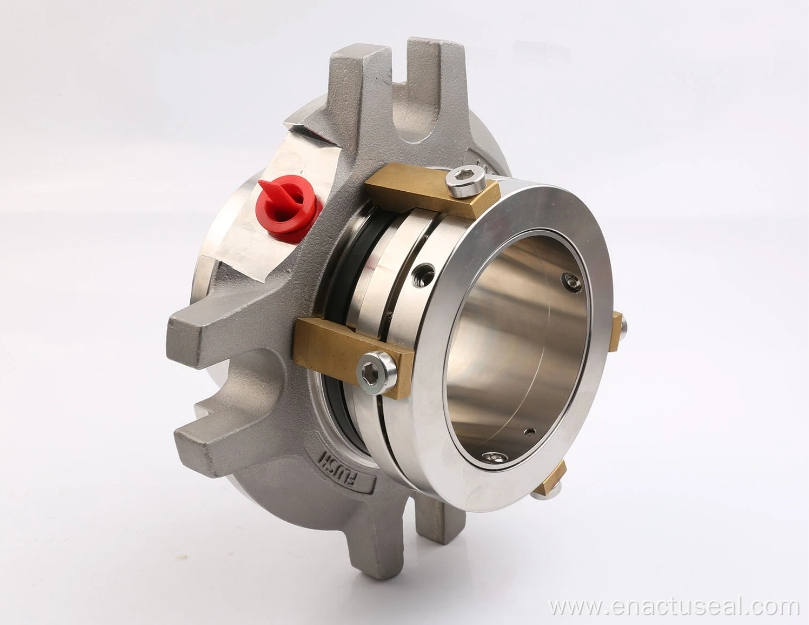

EDM Double Cartridge Mechanical Seals for Industrial Pumps
EDM Double Cartridge Mechanical Seals for Industrial Pumps
Payment Type:
L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union,D/A
Incoterm:
FOB,CFR,CIF,EXW
$11,300.00 — $5,600,000.00 /Set
Product Description
Product Attributes
Brand: Enactus
Brand Name: Enactus
Size: 25-140mm
Temperature: -20 ~ 180ºC
Speed: up to 20m/S
Application: Oil and gas industry, chemical industry, power industry, steel industry, pharmaceutical industry.
Pressure: 0-20bar
Supply Ability & Additional Information
Packaging: Carton,outer package as request
Transportation: Ocean,Land,Air,Express,Express
Place of Origin: China
Supply Ability: 100000 Piece/Pieces per Month
HS Code: 8484200090
Port: shanghai,guangzhou,ningbo
Payment Type: L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union,D/A
Incoterm: FOB,CFR,CIF,EXW
Product Description
EDM Double Cartridge Mechanical Seals are specifically designed for industrial pumps. These seals consist of two seal faces that are mounted on a rotating and stationary ring. The rotating ring is connected to the pump shaft, while the stationary ring is fixed to the pump housing.The purpose of these seals is to prevent leakage of fluid from the pump, ensuring the efficient and reliable operation of the pump. They are commonly used in applications where high pressures, temperatures, and corrosive fluids are involved.
Size(mm)
EDM double cartridge Mechanical Seals offer several advantages over other types of seals. They provide a higher level of sealing performance, reducing the risk of leakage and downtime. They also have a longer service life, resulting in lower maintenance and replacement costs.Single Spring Mechanical Seals.

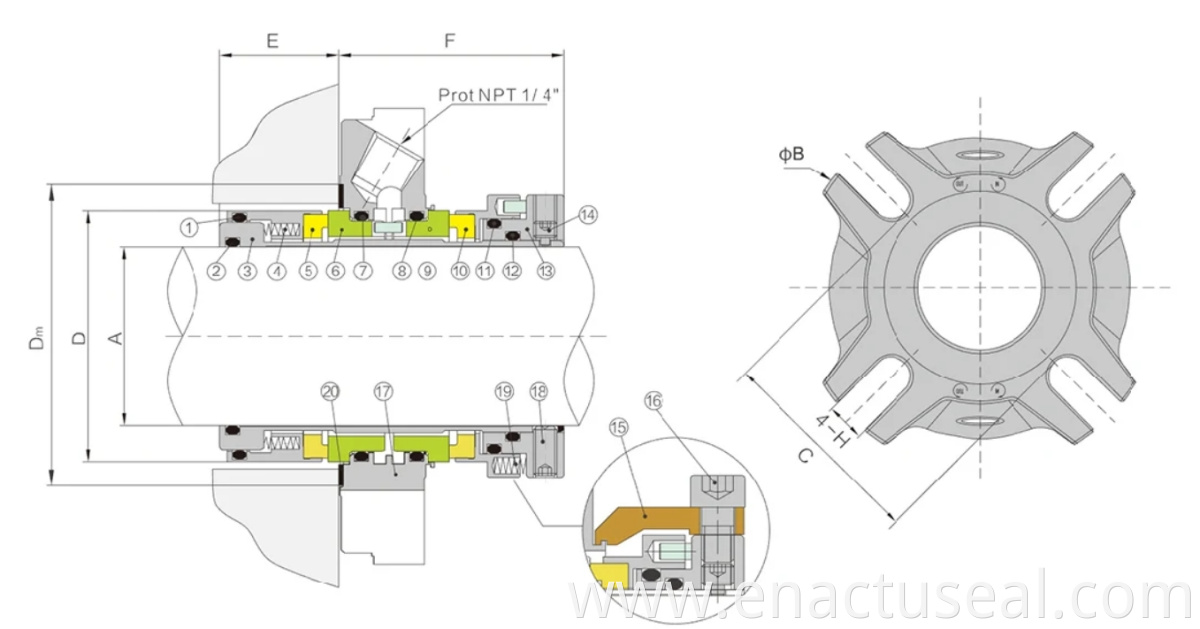

| NO | Decription | Material | NO | Decription | Material |
| 1 | O-Ring | EPR/FKM/Aflas/Kalrez | 11 | O-Ring | EPR/FKM/Aflas/Kalrez |
| 2 | O-Ring | EPR/FKM/Aflas/Kalrez | 12 | O-Ring | EPR/FKM/Aflas/Kalrez |
| 3 | Shaft Sleeve | 316SS | 13 | Clamp Ring | 316SS |
| 4 | Spring | Alloy 276 | 14 | Anti-tamper Screw | 316SS |
| 5 | Inboard Rotary Face | Carbon/SSIC/TC | 15 | Setting Clip | Brass |
| 6 | Inboard Stationary Face | SSIC/TC | 16 | Clip Screw | 316SS |
| 7 | O-Ring | EPR/FKM/Aflas/Kalrez | 17 | Gland | 316SS |
| 8 | O-Ring | EPR/FKM/Aflas/Kalrez | 18 | Drive Screw | 316SS |
| 9 | Outboard Stationary Face | SSIC/TC | 19 | Spring | Alloy 276 |
| 10 | Outboard Rotary Face | Carbon/SSIC/TC | 20 | Gasket | AF1 |
| φA | φB | C | φD | φDm | E | F | H |
| 24 | 110.0 | 60.5 | 38.0 | 56.0 | 31.1 | 51.0 | 13.2 |
| 25 | 110.0 | 60.5 | 39.4 | 56.0 | 31.1 | 51.0 | 13.2 |
| 28 | 110.0 | 60.5 | 42.6 | 58.0 | 31.1 | 51.0 | 13.2 |
| 30 | 110.0 | 63.5 | 44.0 | 61.5 | 31.1 | 51.0 | 13.2 |
| 32 | 110.0 | 63.5 | 46.0 | 61.5 | 31.1 | 51.0 | 13.2 |
| 33 | 110.0 | 63.5 | 47.0 | 61.5 | 31.1 | 51.0 | 13.2 |
| 35 | 110.0 | 67.0 | 49.0 | 65.0 | 31.1 | 51.0 | 13.2 |
| 38 | 127.0 | 72.0 | 55.8 | 70.0 | 29.1 | 56.3 | 14.2 |
| 40 | 127.0 | 72.0 | 55.8 | 70.0 | 29.1 | 56.3 | 14.2 |
| 43 | 127.0 | 72.0 | 59.0 | 71.0 | 29.1 | 56.3 | 14.2 |
| 45 | 133.0 | 77.0 | 62.2 | 75.0 | 29.1 | 56.3 | 14.2 |
| 48 | 133.0 | 77.0 | 65.4 | 75.0 | 29.1 | 56.3 | 14.2 |
| 50 | 133.0 | 77.0 | 65.4 | 75.0 | 29.1 | 56.3 | 14.2 |
| 53 | 139.0 | 86.0 | 68.5 | 83.0 | 31.3 | 56.3 | 14.2 |
| 55 | 146.0 | 94.0 | 71.7 | 92.0 | 31.3 | 56.3 | 17.5 |
| 58 | 146.0 | 94.0 | 74.9 | 92.0 | 31.3 | 56.3 | 17.5 |
| 60 | 155.0 | 100.0 | 78.1 | 92.0 | 31.3 | 56.3 | 17.5 |
| 63 | 178.0 | 109.5 | 84.1 | 108.0 | 28.1 | 63.8 | 17.5 |
| 65 | 178.0 | 109.5 | 87.3 | 108.0 | 28.1 | 63.8 | 17.5 |
| 70 | 178.0 | 109.5 | 90.5 | 108.0 | 28.1 | 63.8 | 17.5 |
| 75 | 190.5 | 125.0 | 96.8 | 124.0 | 28.1 | 63.8 | 17.5 |
| 80 | 190.5 | 125.0 | 100.0 | 124.0 | 28.1 | 63.8 | 17.5 |
| 85 | 203.0 | 135.0 | 106.4 | 133.0 | 28.1 | 63.8 | 17.5 |
| 90 | 216.0 | 150.0 | 112.7 | 146.0 | 28.1 | 63.8 | 20.0 |
| 95 | 216.0 | 150.0 | 119.1 | 146.0 | 28.1 | 63.8 | 20.0 |
| 100 | 229.0 | 168.0 | 122.2 | 165.0 | 28.1 | 63.8 | 20.0 |
